Brand Name : | onsemi |
Model Number : | FDC638APZ |
Price : | Negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 999999 |
Delivery Time : | 1-3 days |
FDC638APZ MOSFET Power Electronics P-Channel 2.5V PowerTrench® Specified
Drain to Source Voltage (Vdss) | ||
Current - Continuous Drain (Id) @ 25°C | ||
Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V | |
Rds On (Max) @ Id, Vgs | 43mOhm @ 4.5A, 4.5V | |
Vgs(th) (Max) @ Id | 1.5V @ 250µA | |
Gate Charge (Qg) (Max) @ Vgs | 12 nC @ 4.5 V | |
Vgs (Max) | ±12V | |
Input Capacitance (Ciss) (Max) @ Vds | 1000 pF @ 10 V | |
FET Feature | - | |
Power Dissipation (Max) | 1.6W (Ta) | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | ||

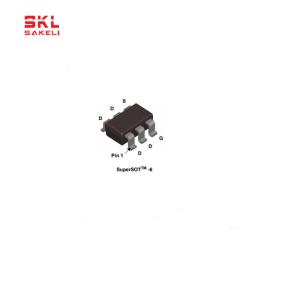

Supplier Device Package | SuperSOT™-6 | |
Package / Case |
Product Listing:
ON Semiconductor FDC638APZ MOSFET Power Electronics, SOT-23-6 Package
Features:
• Low On-Resistance
• Low Threshold Voltage
• ESD Protection
• Fast Switching
• Pb-Free and RoHS Compliant
Specifications:
• Drain-Source Voltage: -20V
• Gate-Source Voltage: -20V
• Drain Current: -3A
• Power Dissipation: 500mW
• Operating Temperature Range: -55°C to 150°C
• Storage Temperature Range: -55°C to 150°C
• Thermal Resistance Junction-to-Case: 0.45°C/W
• Thermal Resistance Junction-to-Ambient: 2.6°C/W
• Lead Free Finish/RoHS Compliant (Note 1) (Note 2)
• Moisture Sensitivity: Level 2 (Note 3)
• ESD Rating of Class 3B (Note 4)
• Switching Time: 8ns
• Package Type: SOT-23-6
![]() |
